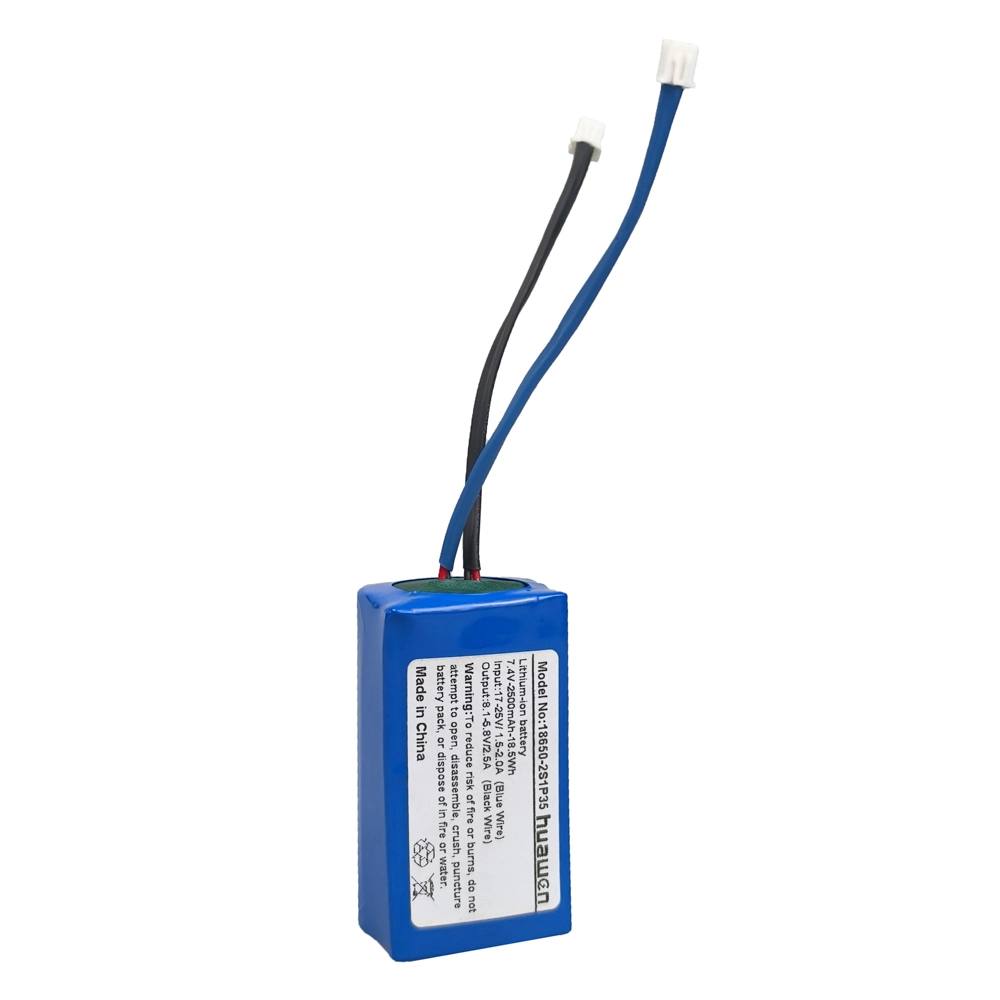

18650-2S1P35 7.4V 2600mAh/3500mAh Solar Lithium-ion Battery Pack With 17V-25V Solar Charging

Custom 3.7V/5V/9V/12V/24V Lithium Battery Pack With Smart BMS

Model: 18650-2S1P35
Battery cell type: NMC
Connection method: 2S1P
Capacity: 2600mAh/3500mAh
Solar Charing: 17V~25V/2A Max (Blue Wire)
Discharge: 5.8V~8.1V/2.5A (Black Wire)
Weight: approx 110g
Cycle: more than 500 times at 80% DOD
Customized services:
MOQ 500 sets
√ Battery capacity/voltage/current
√ Brand / LOGO
√ Packaging method

Inquiry

Write a Review

What Specifications Can Huawen Make？

We can provide all kinds of specifications,there is a part of us.

Model	18650Pack
Nominal voltage	3.7V	7.4V	11.1V	22.2V	36V
Nominal capacity	1800mAh/2000mAh/2200mAh/2600mAh/3000mAh/3200mAh/3500mAh
Battery pack	1S1P/2P/3P/4P/5P/......	2S1P/2P/3P/4P/5P/......	3S1P/2P/3P/4P/5P/.....	6S1P/2P/3P/4P/5P/.....	10S1P/2P/3P/4P/5P/.....
Input voltage	4.2V	8.4V	12.6V	25.2V	42V
Input current	1A~10A	1A~10A	1A~20A	1A~20A	1A~20A
Output voltage（regular ver.)	2.75V~4.2V(WRV)	5.5V~8.4V(WRV)	8.25V~12.6V(WRV)	16.5V~25.2V(WRV)	27.5V~42V(WRV)
Output voltage（custom ver.)	5V/9V(CV)	5V/9V/12V(CV)	5V/9V/12V/24V(CV)	5V/9V/12V/24V/36V/48V(CV)	5V/9V/12V/24V/36V/48V(CV)
Continuous output current	1A~20A	1A~20A	1A~20A	1A~20A	1A~20A
Peak output current	30A	40A	100A	120A	120A
PCM/BMS	OVP/UVP/OCP/OCC/OTP/TV/CVCC, etc.
Connector	ZH1.5mm/PH2.0mm/SH1.0mm/VH3.96/SM2.54/XH2.54, etc.
Battery type	NMC
Working temperature	Charge: 0~45℃ Discharge: -10~60 ℃
Cycle life	Around 300 times / 500 times
Warranty	12 Months
Application	Consumer electronics (electric toothbrushes, Bluetooth speakers, POS machines, etc.). Power tools (electric bicycles, electric motorcycles, electric cars, golf carts, handheld electric drills, etc.). Lamps (flashlights, LED flashlights, laser flashlights, engineering lighting lamps, mining lamps, emergency lights, etc.). Energy storage (home optical storage systems, UPS, base stations, computer room power supplies, clean energy storage, etc.).

1.Accurately adapt to 18650 ternary lithium battery pack solution

Carefully selected battery cells, dual guarantee of performance and safety

Battery cell core parameters

Single cell specifications: 18mm diameter × 50mm height, nominal voltage 3.6V~3.7V.

Capacity range: 2000mAh~3500mAh (supports 1C/3C/5C/8C/10C/12C/15C rate discharge, continuous discharge current 2A-30A).

Key performance: -20℃~60℃ wide temperature range operation, cycle life ≥500 times (80% capacity retention rate), in line with lightweight and cost-effective requirements.

Multi-scenario combination design

Consumer electronics: 2S-3S low string number solution (such as Bluetooth devices, portable lamps).

Power tools: 4S-8S medium rate combination (electric screwdriver, small sweeper).

Energy storage backup: multi-parallel module expansion capacity (security equipment, micro UPS).

Certification support

UN38.3 is standard, CE/ROHS/KC is optional, and global access for terminal products is supported.

Nominal voltage

3.7V

1S2P

1S3P

1S4P

Other

Nominal voltage

7.4V

2S1P

2S2P

2S3P

Other

Nominal voltage

11.1V

3S1P

3S2P

3S4P

Other

Nominal voltage

22.2V

25.9V

36V

We stock a range of standard Li-ion battery packs for a wide range of applications in the consumer and industrial markets. All of these lithium batteries have a PCM/BMS (Protection Control Module) to ensure safety.

If you require a quote for a Li-ion battery pack, or you cannot find the specific Li-ion battery pack you need on our website, please contact us.

2.Intelligent PCM/PCB/BMS customization:

precise control, double safety

Specially optimized for 18650 ternary lithium batteries

Hierarchical protection scheme

Basic version: overcharge (≤4.25V±0.05V)/overdischarge (≥2.5V±0.05V)/short circuit/overcurrent protection.

Enhanced version: 10K/100K NTC high-precision temperature monitoring (±1℃), single cell voltage balancing (balancing current 30-50mA).

High-end version: SOC estimation (accuracy ±5%), self-recovery fuse, historical fault recording function.

Communication protocol compatibility

Support UART, CAN, RS485 interface protocols, seamlessly connect industrial control equipment and IoT terminals.

Development efficiency

UN38.3 is standard, CE/ROHS/KC is optional, and global access for terminal products is supported.

3.Connectors and wiring harnesses: professional matching of current and scenarios

Full coverage from micro devices to medium-power applications

Connector brands and types

Recommended brands: JST (XH/SH series), Molex (Micro-Fit 3.0), DC Plug, XT Plug, etc.

Special requirements: support waterproof type (IP67), anti-drop buckle design, gold-plated contacts (reduced impedance).

Customized wires

Wire diameter range: AWG10 (high current power line) ~ AWG26 (signal line).

Wire type: silicone wire (bending resistance 100,000 times), Teflon wire (high temperature resistance 150℃).

Wire length can be freely defined: 50mm (embedded) to 2m (external device), supporting color coding.

Development efficiency

Provide standardized BMS modules and complete customized debugging in 7-10 days.

4. Appearance packaging: flexible choice of structure and materials

From industrial-grade protection to extreme lightweight

Shell material and process

Flame retardant material options: ABS/PC material, UL94 V0/V1/V2 flame retardant grade optional.

Custom plastic mold: customers can provide plastic mold design, or we can open mold on demand.

Custom silicone mold: food-grade silicone shell (Shore hardness 30A-80A), suitable for medical/wearable devices.

Structural design optimization

Compact solution: battery pack thickness <22mm (2S1P bare package).

Heat dissipation enhancement: optional metal heat sink embedded or shell hollow design.

5. Packaging and labeling: safe delivery and brand penetration

Full-link value-added from production end to user end

Professional protective packaging

Finished product packaging: blister lining + corrugated paper box, anti-drop height ≥1.2m.

Custom plastic mold: customers can provide plastic mold design, or we can open mold on demand.

Custom silicone mold: food-grade silicone shell (Shore hardness 30A-80A), suitable for medical/wearable devices.

Compliance identification system

Mandatory identification: voltage, capacity, polarity, fire protection identification (UL/IEC standards).

Smart label: optional QR code to achieve production batch traceability.

Brand appearance design

Shell LOGO process: laser engraving, silk screen printing, embossing (depth 0.2mm-0.5mm)Packaging.

Box customization: support Pantone color matching and corporate slogan printing.
